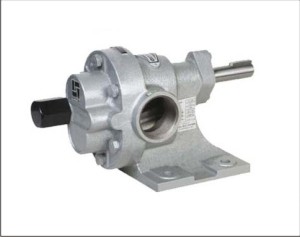

Material of Construction. Pump Body:Graded CI Casting. Gears:alloy Steel-single Helical. Shaft:Alloy steel -Hardened & ground. Bush:Self Lubricated Sintered Bronze Bushes. Sealing: Oil Seal. Size:1/4” to 3” BSP (9 different sizes)Range:5 to 500 LPM. Liquid:All General Porpose Viscous fluid like Lub oil,Paints,adible oil etc. The pump is made to provide sturdy design and construction to ensure long trouble free life with best performance.Built - in pressure Maximum working pressure is 10 kg/cm2.
download pdf | FT pdf |

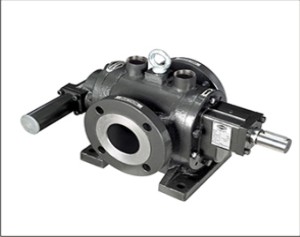

Material of Construction. Pump Body: Graded CI Casting . Gears:Alloy Steel - double Helical - H.Nitrided. Shaft:Alloy steel - case Hardened & ground. Bearing & Bushes : Needle Roller bearing (FTRN)Bronze Bushes(FTRB). Sealing :Oil Seal/Teflon base ’z’ pack. Size:1/2’’ to 6’’(8 different sizes) Range:0.50 to 200m3/Hr. Liquid:Crude oil,dirty oil,kerosene,LDO,HSD ,Wood Pulp, Furnace oil etc. viscosity up 1,00,000 SSU.temperature up to 200 c. In built pressure Relief valve is provided to achieve maximum working pressure 10kg/cm2
download pdf | FTRN/FTRB pdf |

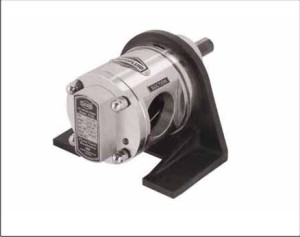

Material of Construction Pump Body:SS-316(investment Casting). Gears:AISI-SS 316(H.Nitrided)-single Helical Gear. Shaft:AISI-SS 316(H.Nitrided & Ground). Bush:Teflon coated imported ‘’DU Bushes. Sealing :Teflon base ‘Z’ pack. Size:1/4 to 21/2’(6 different sizes) Range : 8to 300 LPM. Liquid:All food Grade products like Ghee, Butter,etc. for pharmaceutiucal industries to handle glycol, Glycerine etc. For chemical industries to handle corrosive viscous chemicals. The pump is very versetile,compact,easy cleanable and operates at maximum working pressure -10kg/cm3
download pdf | FTSS pdf |

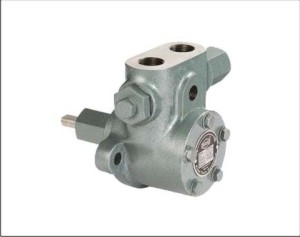

This series contains Fuel pressure internal gear type foot mounted pumps with flange threading at inlet & outlet ports Material of construction Pump body:GradedCI Casting. Shaft Rotor:Alloy Steel-H.Nitrided. Sealing:Mechanical Sealing. Size:1/2” to 3/4” BSP Range:60 to 2500 LPH. Liquid:Ful oil boilers burners. In built pressure relief valve is provided & pump Perates up to maximum temperature 2000 c (Fuel) and maximum working pressure 35kg/cm3
download pdf | FIG PDF |

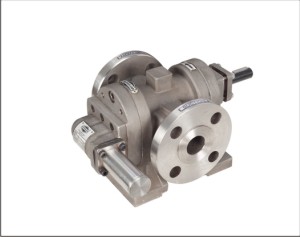

Material of Construction. Pump Body: SS-316(FTMS)/Graded CI casting (FTM) Gears: SS-316 Double Helical –H. Nitrided(FTMS)/SS-316 Single Helical-H.Nitrided (FTM). Shaft: ss-316-H. NItrided &Ground. Bush : Teflon coated imported ‘DU’ Bushes(FTMS)/Wear Plaste cum bush bronze (FTM). Sealing : Teflon base ‘z’ pack. Size: 1/2 to 6 “ BSP Range: 12 to 2000LPM. Liquid: Liquid used in boilers burners,Crude oil ,Tar etc. FTMS Series contains in built pressure Relief valve .The pump used to handle corrosive.Thinner or thicker liquids having lesser lubricating value. The Maximum working pressure is 10 kg/cm2
download pdf | FTMS pdf |

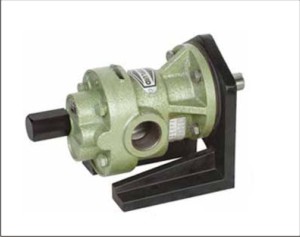

This series contains foot mounted with ‘ L’ bracket & Flange Mounted general purpose pumps having female threading at inlet & outlet ports. Material of Construction. Pump Body : Graded CI Casting . Gears:Alloy Steel –single Helical.Shaft:Alloy Steel-Hardened & Ground. Bush:Self Lubricated Sintered Bronze Bushes.Sealing:Oil Seal. Size:1/4” to 21/2 BSP(8 different sizes) Range:2.5 to 350 LPM. Liquid:All General Purpose Viscous fluid like Lub oil,Paints,transformer oil,LDO etc. The Maximum working pressure is 10kg/cm2.
download pdf | FTX.pdf |

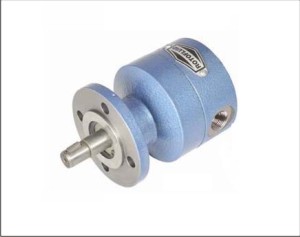

This series contains flange mounted and shaft mounted pumps having female threading at inlet & outlet ports. Material of Construction. Pump Body :Graded C|Casting . Rotor : Sintered CI Casting. Shaft:Alloy Steel. Sealing :Oil Seal. Size:1/4” to ¾” BSP (8 different size) Range:0.5 to 40 LPM at 1500 RPM (400c) Liquid:Lubricating oil.The Pump are designed to transfer the lubricating oil with maximum working pressure is 10kg/cm2.
download pdf | FTMP pdf |

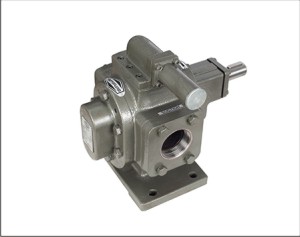

This series contains special purpose foot and flange mounted pumps with fluange and thread end at inlet & outlet ports Material of Construction. PUMP Body :Graded CI Casting. Gears:Alloy Steel-double Helical –H.Nitrided. Shaft:Alloy steel –caseHardenedb & ground. Bearing & Bushes Needle Roller bearing (FTNX) Bronze Bushes (FTBX). Sealing: Oil Seal/Teflon base’Z’ Pack . Size:1/2 “ 4” (6 different sizes ) Range:0.30 to 54 m3/Hr. Liquid:Cruid oil ,dirtly oil ,kerosene,LOD,HSD,Wood Pulp, Furnase oil etc. Viscosity up 1,00,000- SSU temperature up to 2000c. In built Pressure Relief valve is provided to achieve maximum working pressure – 21kg/cm2
download pdf | FTBX/FTNX pdf |
